3D Engine Module Documentation

Download the module

Please click here to download version 1.0.2 of the 3D Engine module.

What's the 3D Engine module ?

The 3D Engine module is an Ignition module embedding a web SDK to interact with 3D models.
It permits an increased manipulation of your 3D models using a perspective component.

Here is a non-exhaustive list of features :

  1. Visualize a 3D model,
  2. Move manually or via script in the model,
  3. Interact with the different entities, (Selection, Hide entity, XRay)
  4. Retrieve the ID of a selected entity,
  5. Customize an entity using Ignition Style,
  6. Create visible annotations on the model to display the desired information, (Binding, tag..)
  7. Blinking entities on alarm triggers...

You can try it right now here !

The required model format is XKT.

Convert your model to XKT format

The XKT format compresses large double-precision models to a compact payload that loads quickly over the Web.

The best way to get a correct xkt file is to use the xeokit-convert tool.

Preferably use a realese version such as 1.0.9.

The file types compatible with the converter are gltf, ifc, laz, las, pcd, ply, stl and cityjson.

To do this, you need to download the converter from github or install the command via npm.

The following options are available :

Here is an example of an IFC to XKT file conversion.

Import an xkt model into the component

This solution is not conventional in Ignition.
The files are not saved in the gateway and therefore not redundant by Ignition.
The ideal solution is to use a folder mounted with the webdev module.

First, you will have to store the model on your ignition server.

To do, this you can create a models folder on the ignition webserver and put your files there.

Windows : (C:\Program Files\Inductive Automation\Ignition-windows-x86-64-8.1.16)\webserver\webapps\main\models\yourfile.xkt
Unix : /usr/local/ignition/webserver/webapps/models/yourFile.xkt

Now you can import your models from your 3D Engine component by filling in the "models" property as follows :

You can load multiple models into a viewer by specifying several objects in the list.

Press run (F5) to begin loading the model in the designer.

Configure a Model

The models property of the 3D Engine component is a configuration list of models that allows configuring the models to be loaded.

The properties of a Model : (see sdk)

Name Type Defauly Description
id String ID to assign to the root Entity#id, unique among all components in the Viewer's Scene, generated automatically by default.
src String Path or URL to an .xkt file, as an alternative to the xkt parameter.
loaded Boolean True Should the model be loaded?
position Number[] [0,0,0] The model single-precision 3D position, relative to the origin parameter.
scale Number[] [1,1,1] The model's scale.
rotation Number[] [0,0,0] The model's orientation, given as Euler angles in degrees, for each of the X, Y and Z axis.

Create annotations

An annotation is a visible bullet in your model wich can display data.

It is always dependent of an entity.

You can use links to populate its value or customize it using Ignition Style.

The properties of an annotation :

  1. id, its identifier in the model, (String, AN-XXX)
  2. worldPos, its position in the model, (Number[], [x,y,z])
  3. value, the visible value,
  4. style.

First, to create an annotation you must instantiate the associated entity in the configuration property of the component.

Instantiate an entity

There are two ways to do this :

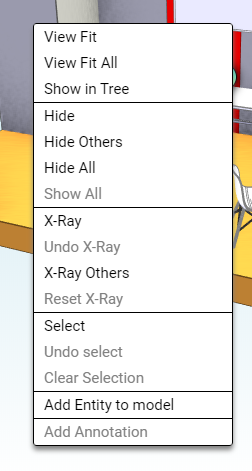

  1. From the Designer, go to runtime (F5), right click on the desired entity, click on “Add Entity to model”,
  2. You will notice that the configuration props is now composed of an item with the Id of your entity.
  3. Or
  4. From the designer, click on + in the configuration props of your component,

  5. Fill in the id with the id of the desired entity.

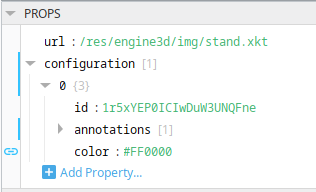

You can customize the color of an entity with the property color.

Create an annotation

Then, on the same principle you can create annotations in order to display values on your model :

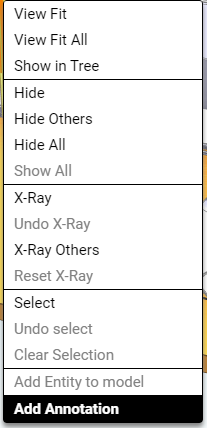

  1. From the Designer, go to runtime (F5), right click on the desired entity, click on “Add annotation”.

  2. Or

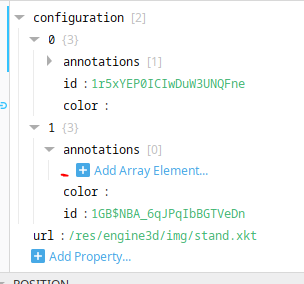

  3. From the designer, click on + in the annotations props of your entity,
  4. Fill the id with “AN-” + the id of the desired entity,

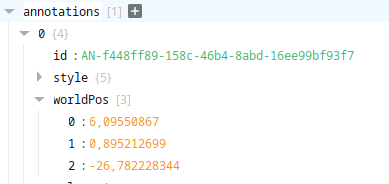

  5. Fill in the worldPos.

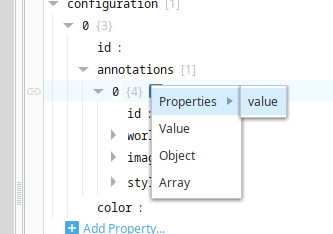

Set the value

Once your annotation is declared :

  1. Add the value property to the annotation object,
  2. Create a Binding on this value.

You can customize the background of your annotation with the following style : background : linear-gradient(222deg, #6628e0 0%, #82ffd7 74%)

Configure the NavCube

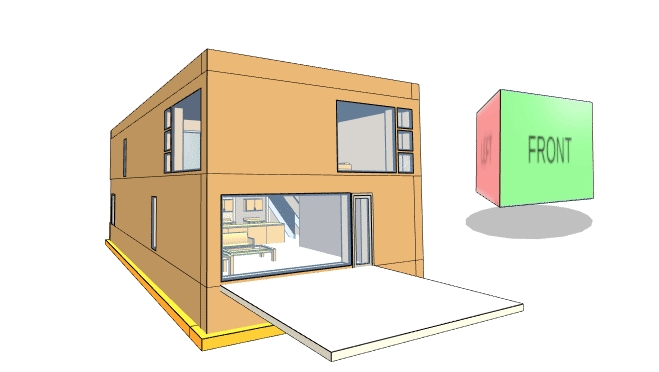

The NavCube lets us look at the entire Scene from along a chosen axis or diagonal.

Overview :

  1. Rotating the NavCube causes the Viewer's Camera to orbit its current point-of-interest. Conversely, orbiting the Camera causes the NavCube to rotate accordingly.
  2. The faces of the NavCube are aligned with the Viewer's Scene's World-space coordinate axis. Clicking on a face moves the Camera to look at the entire Scene along the corresponding axis. Clicking on an edge or a corner looks at the entire Scene along a diagonal.
  3. The NavCube can be configured to either jump or fly the Camera to each new position. We can configure how tightly the NavCube fits the Scene to view, and when flying, we can configure how fast it flies. We can also configure whether the NavCube fits all objects to view, or just the currently visible objects.
  4. Clicking the NavCube also sets CameraControl#pivotPos to the center of the fitted objects.

The properties of the NavCube : (see sdk)

Name Type Defauly Description
visible Boolean True The visibility of the NavCube.
shadowVisible Boolean True The visibility of the NavCube' shadow.
cameraFly Boolean True Whether the Camera flies or jumps to each selected axis or diagonal.
cameraFitFOV Number 45 How much of the field-of-view, in degrees, that the 3D scene should fill the Canvas when the Camera moves to an axis or diagonal.
cameraFlyDuration Number 0.5 When flying the Camera to each new axis or diagonal, how long, in seconds, that the Camera takes to get there.
color String lightblue Custom uniform color for the faces of the NavCube.
frontColor, backColor, leftColor, rightColor, topColor, bottomColor String Custom color for the face of the NavCube. Overrides color.
hoverColor String Custom color for highlighting regions on the NavCube as we hover the pointer over them.
fitVisible Boolean Sets whether the axis, corner and edge-aligned views will fit the view to the entire Scene or just to visible object-Entitys. Entitys are visible objects when Entity#isObject and Entity#visible are both true.
synchProjection Boolean Sets whether the NavCube switches between perspective and orthographic projections in synchrony with the Camera. When false, the NavCube will always be rendered with perspective projection.
isProjectNorth Boolean False Sets whether the NavCube switches between true north and project north - using the project north offset angle.
projectNorthOffsetAngle Number 0 Sets the NavCube project north offset angle - when the isProjectNorth is true.
labels Object { "front": "Front", "back": "Back", "top": "Top", "bottom": "Bottom", "left": "Left", "right": "Droit" } Labels for navCube faces.
style Object

Cube labels can be translated using the Translation Manager

You can set the NavCube at the desired location by adjusting the top, left, right, and bottom properties of the NavCube's style.

Configure the TreeView

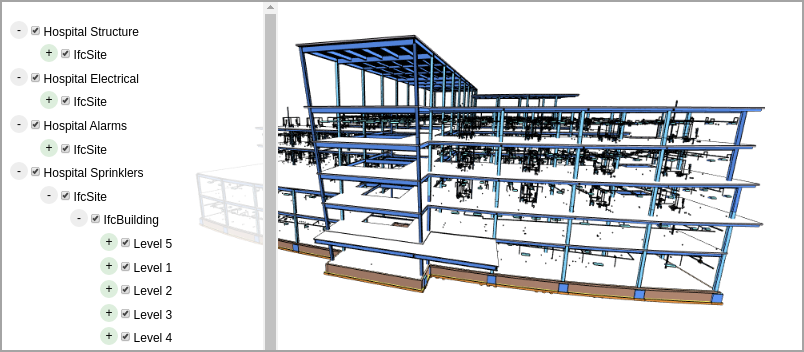

The TreeView is a panel tool that enables users to manipulate models and their structure.

Overview :

  1. Allows loading and unloading 3D models in the viewer (Models tab),
  2. Allows navigating in the viewer with a left-click on the structure (Structure tab),
  3. Allows interacting with the models with a right-click (XRay, View Fit, Hide, etc.).

The properties of the TreeView : (see sdk)

Name Type Defauly Description
autoExpandDepth Number 0 Optional depth to which to initially expand the tree.
hierarchy String containment How to organize the tree nodes: "containment", "storeys" or "types".
sortNodes Boolean True When true, will sort the children of each node. For a "storeys" hierarchy, the IfcBuildingStorey nodes will be ordered spatially, from the highest storey down to the lowest, on the vertical World axis. For all hierarchy types, other node types will be ordered in the ascending alphanumeric order of their titles.
pruneEmptyNodes Boolean True When true, will not contain nodes that don't have content in the Scene. These are nodes whose MetaObjects don't have Entitys.
draggable Boolean True Allows user to drag TreeView.
visible Boolean True Initial visibility.
titleStyle Object
containerStyle Object
style Object

You can externalize the TreeView by setting the visible property to False and then adding the treeViewContainer domId to the desired container.
For example, on a flex view that you dock to a screen border.

Configure the Viewer

The properties of the Viewer : (see sdk)

Name Type Defauly Description
units String meters The measurement unit type. Accepted values are "meters", "metres", "centimeters", "centimetres", "millimeters", "millimetres", "yards", "feet" and "inches".
scale Number 1 The number of Real-space units in each World-space coordinate system unit.
origin Number[] [0,0,0] The Real-space 3D origin, in current measurement units, at which the World-space coordinate origin [0,0,0] sits.
antialias Boolean True Whether to enable anti-aliasing.
hover.enable Boolean True Allows highlighting the object hovered with the mouse.
hover.color String #FFFF00 Highlight color.
cameraControl.navMode String orbit Navigation mode. "orbit" - rotation orbits about the current target or pivot point, "firstPerson" - rotation is about the current eye position, "planView" - rotation is disabled.
cameraControl.keyMap String qwerty Custom mappings of keys to CameraControl actions. "qwerty" or "azerty"
canvasId String ID of an existing HTML canvas for the Viewer#scene - either this or canvasElement is mandatory. When both values are given, the element reference is always preferred to the ID.

Scripts and events

flyTo function

This function permits to flies the Camera to a target around the 3D model using a script.

Params object : (see sdk)

Name Type Attribute Description
arc Number
  • optional
  • default: 0
  • Factor in range [0..1] indicating how much the Camera#eye position will swing away from its Camera#look position as it flies to the target.
    entityId String
  • optional
  • ID or instance of a component to fly to.
    aabb Number[]
  • optional
  • World-space axis-aligned bounding box (AABB) target to fly to. [xmin, ymin, zmin, xmax, ymax, zmax]
    eye Number[x,y,z]
  • optional
  • Position to fly the eye position to.
    look Number[x,y,z]
  • optional
  • Position to fly the look position to.
    up Number[x,y,z]
  • optional
  • Position to fly the up vector to.
    projection String
  • optional
  • Projection type to transition into as we fly. Can be any of the values of Camera.projection
    fit Boolean
  • optional
  • default: 0
  • Whether to fit the target to the view volume.
    fitFOV Number
  • optional
  • How much of field-of-view, in degrees, that a target Entity or its AABB should fill the canvas on arrival.
    duration Number
  • optional
  • Flight duration in seconds.
    orthoScale Number
  • optional
  • Animate the Camera's orthographic scale to this target value. See Ortho#scale.

    You can retrieve the position of your camera (eye, look, up) using the "onSelectEntity" event.

    jumpTo function

    This function permits to jump to a target using a script.

    Params object : (see sdk)

    Name Type Attribute Description
    arc Number
  • optional
  • default: 0
  • Factor in range [0..1] indicating how much the Camera#eye position will swing away from its Camera#look position as it flies to the target.
    entityId String
  • optional
  • ID or instance of a component to fly to.
    aabb Number[]
  • optional
  • World-space axis-aligned bounding box (AABB) target to fly to. [xmin, ymin, zmin, xmax, ymax, zmax]
    eye Number[x,y,z]
  • optional
  • Position to fly the eye position to.
    look Number[x,y,z]
  • optional
  • Position to fly the look position to.
    up Number[x,y,z]
  • optional
  • Position to fly the up vector to.
    projection String
  • optional
  • Projection type to transition into as we fly. Can be any of the values of Camera.projection
    fit Boolean
  • optional
  • default: 0
  • Whether to fit the target to the view volume.
    fitFOV Number
  • optional
  • How much of field-of-view, in degrees, that a target Entity or its AABB should fill the canvas on arrival.

    getMetaObject function

    This function permits to get metadata of a 3D model entity using a script.

    You can retrieve the entityId of an entity using the "onSelectEntity" event.

    getSnapshot function

    This function permits to take a screenshot of the 3d model using a script.

    Please note that the background color is transparent by default.
    You need to play with the Viewer's "backgroundColor" property to set a background color.

    loadTreeView function

    Allows loading the tree view into a component external to the viewer.

    getPOV function

    Allows retrieving the camera's POV (Point of View). (eye, look, up)

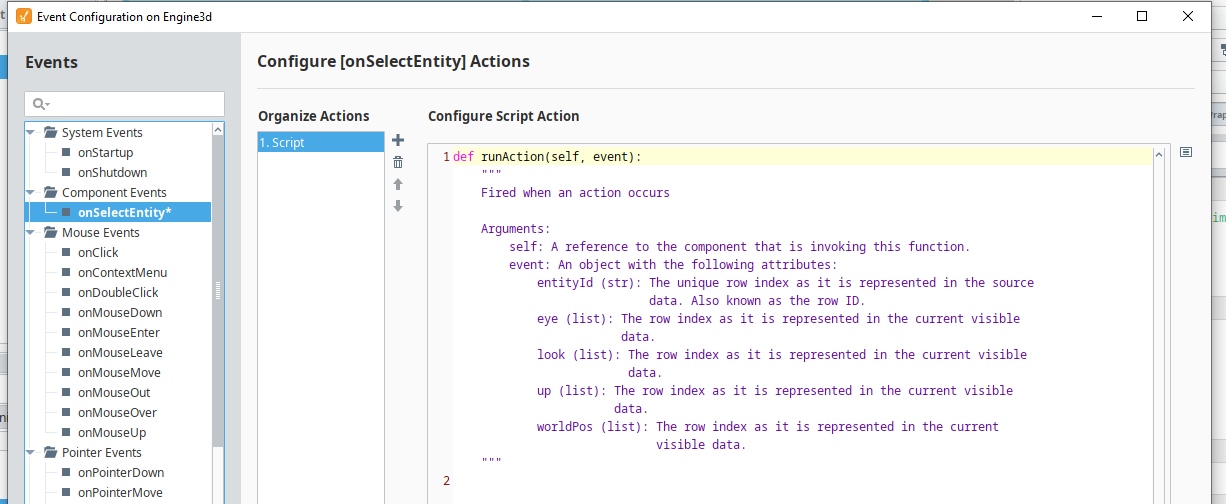

    onSelectEntity event

    The onSelectEntity event permits to retrieve information about your model during its operation when an entity is selected.

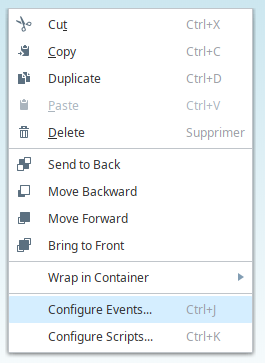

    You can access the events configuration by right-clicking on your component and selecting "Configure events..." (Ctrl+J)

    The event permits to retrieve the id of the selected entity, her world position as well as the information related to the camera (eye, look, up) at the time of the selection.

    You can store the camera information in a custom property for use with the flyTo script function.

    You can use the entityId to find entity in the configuration and change its value or color.

    Changelog

    1. 1.0.0 :
      1. first commercial release
    2. 1.0.1 :
      1. Exhibition of functions and properties of the component enabling better utilization and interactions with the 3D model.
    3. 1.0.2 :
      1. Manage multiple models in a single viewer.
      2. Camera configuration properties.
      3. Bugfix enitities configuration loading. (b1722606290)
    Please contact us here for any further information.
